RGB2HDMI Denise A500

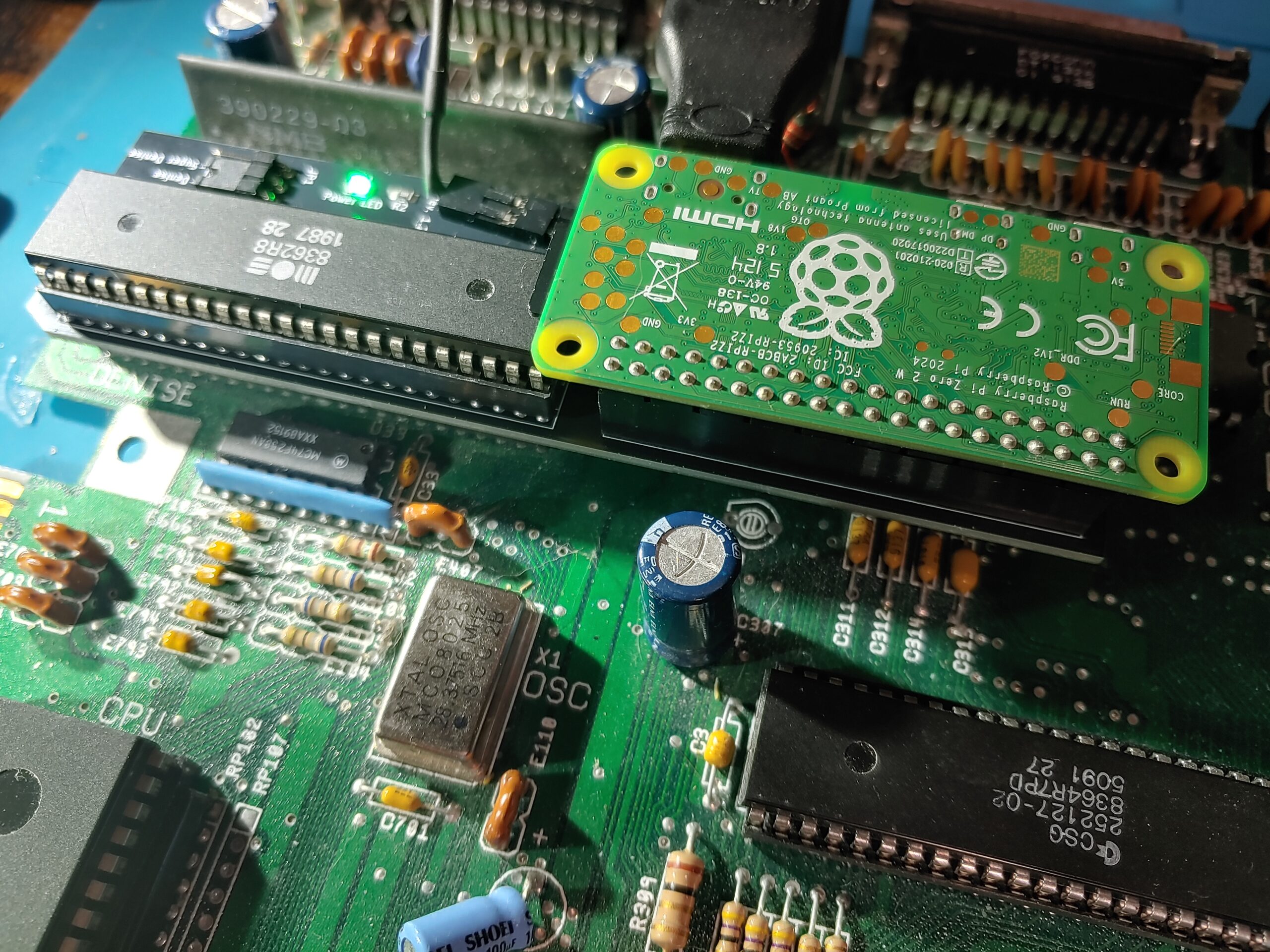

Are you ready for high-quality flicker-free HDMI output from your Amiga 500, or 500 plus? Space is tight on an A500 when you have a Pi Storm Classic or any card that extends from the CPU towards the back of the machine. This is an alternate design of the RGB2HDMI allows for more space near the CPU. Check the pictures to see if the space is available in your A500.

New version 1.1 PCB includes with onboard LED. There is no CPLD on this board to program making it lower cost.

New non-CPLD RGB2HDMI for the Denise socket (Raspberry Pi Zero 1/2 required).

Installation instructions are included.

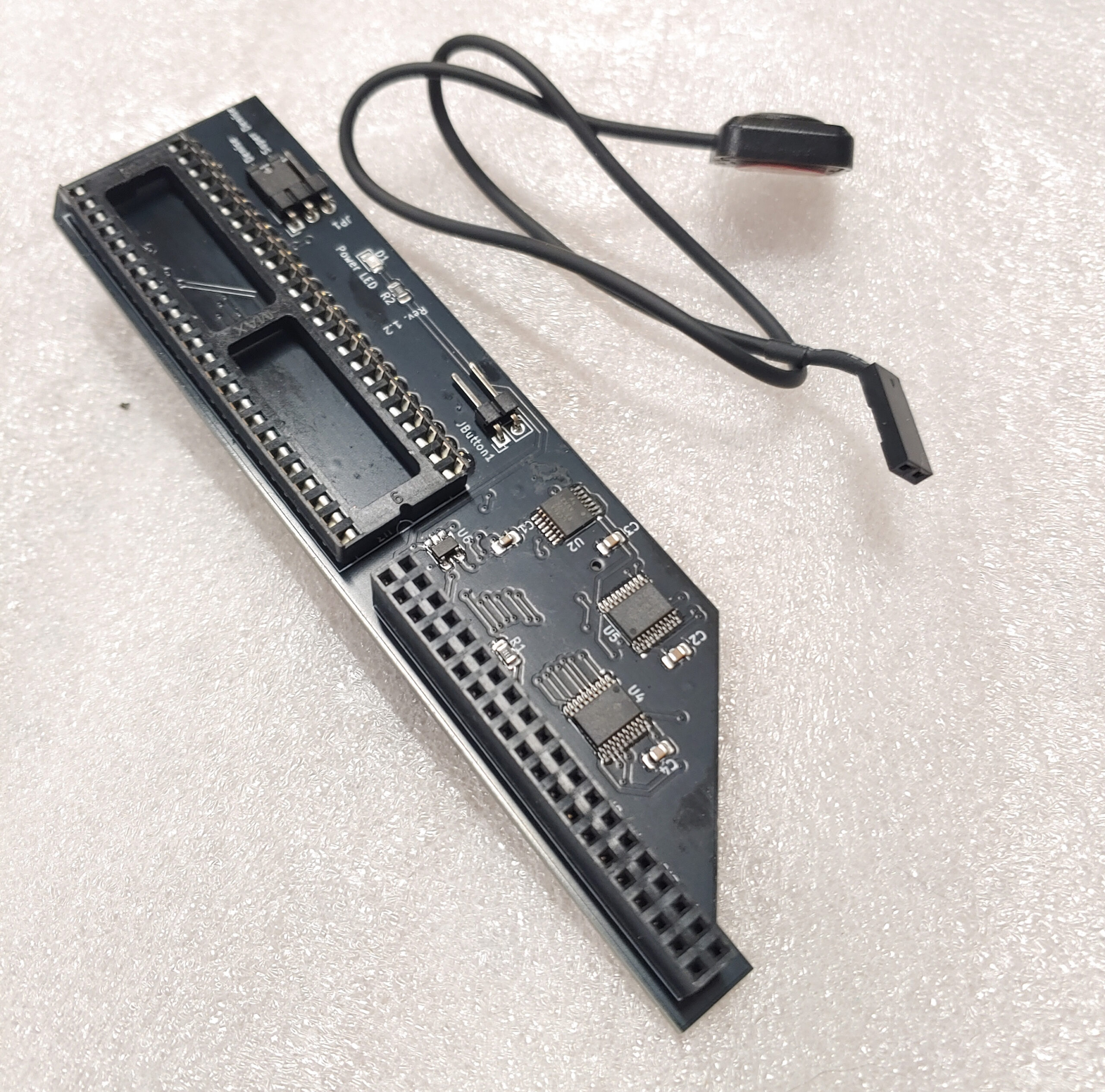

• Fully assembled, high-quality Black PCB with “long boy” style for space.

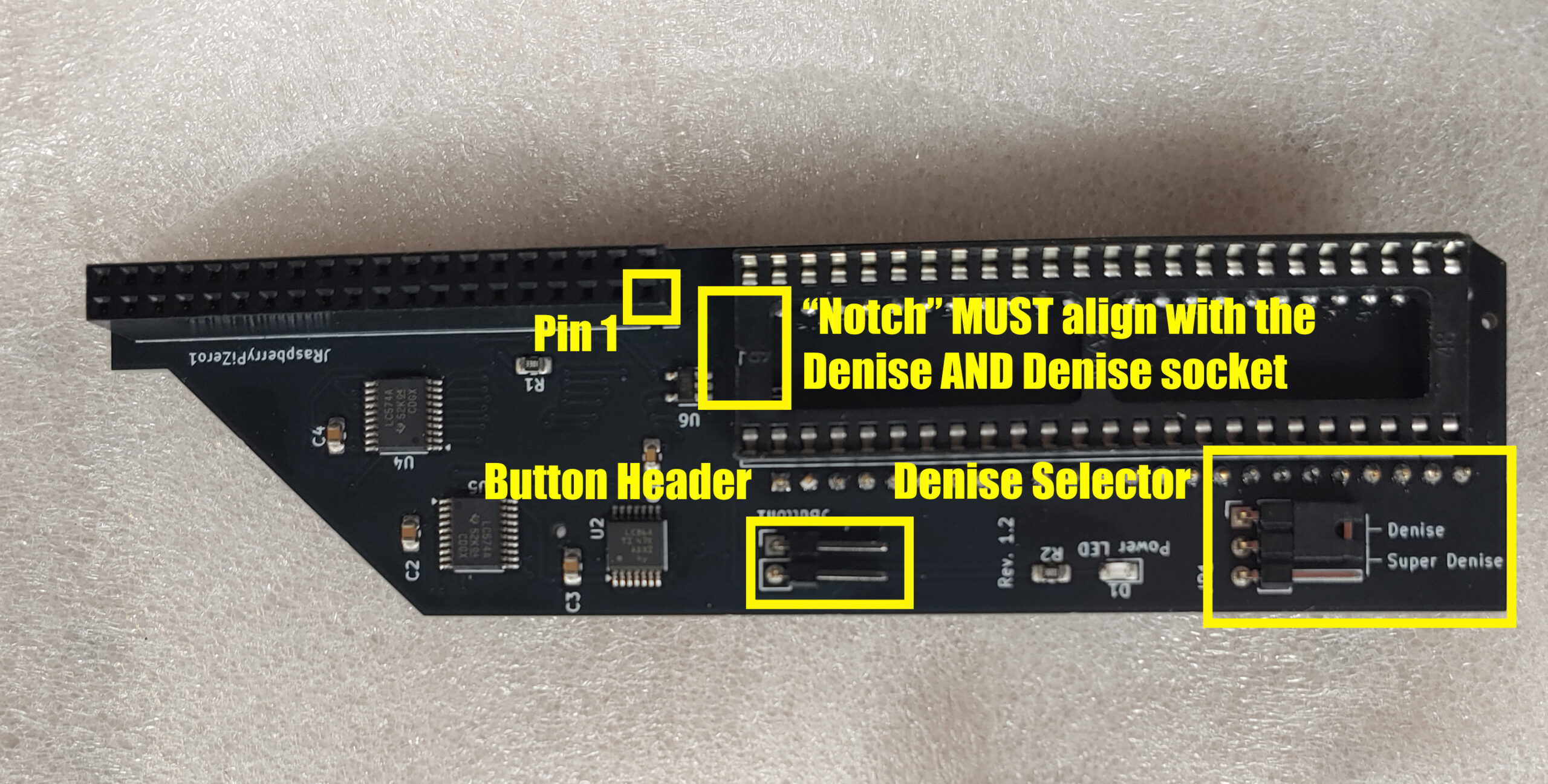

• Button included* (see pictures)
• works great for non-RTG standard display modes such as Games, boot screen, etc.
• Ready to install, but you will still need to install the software on the SD Card for the Pi.
• on-screen menu that enables adjusting video including settings, profiles, and more.
• connect your monitor to the Raspberry Pi’s HDMI port.
• works with low-cost Raspberry Pi Zero and Raspberry Pi Zero 2 (with the latest software).
• works with a small and economical SD Card in the Raspberry Pi Zero, like 1GB; the software only takes approx. 30MB (depending on version)
• works well with most any expansion such as a PiStorm and Accelerators. Basically, it works independently.
• automatically boots/shutoff with the Amiga
