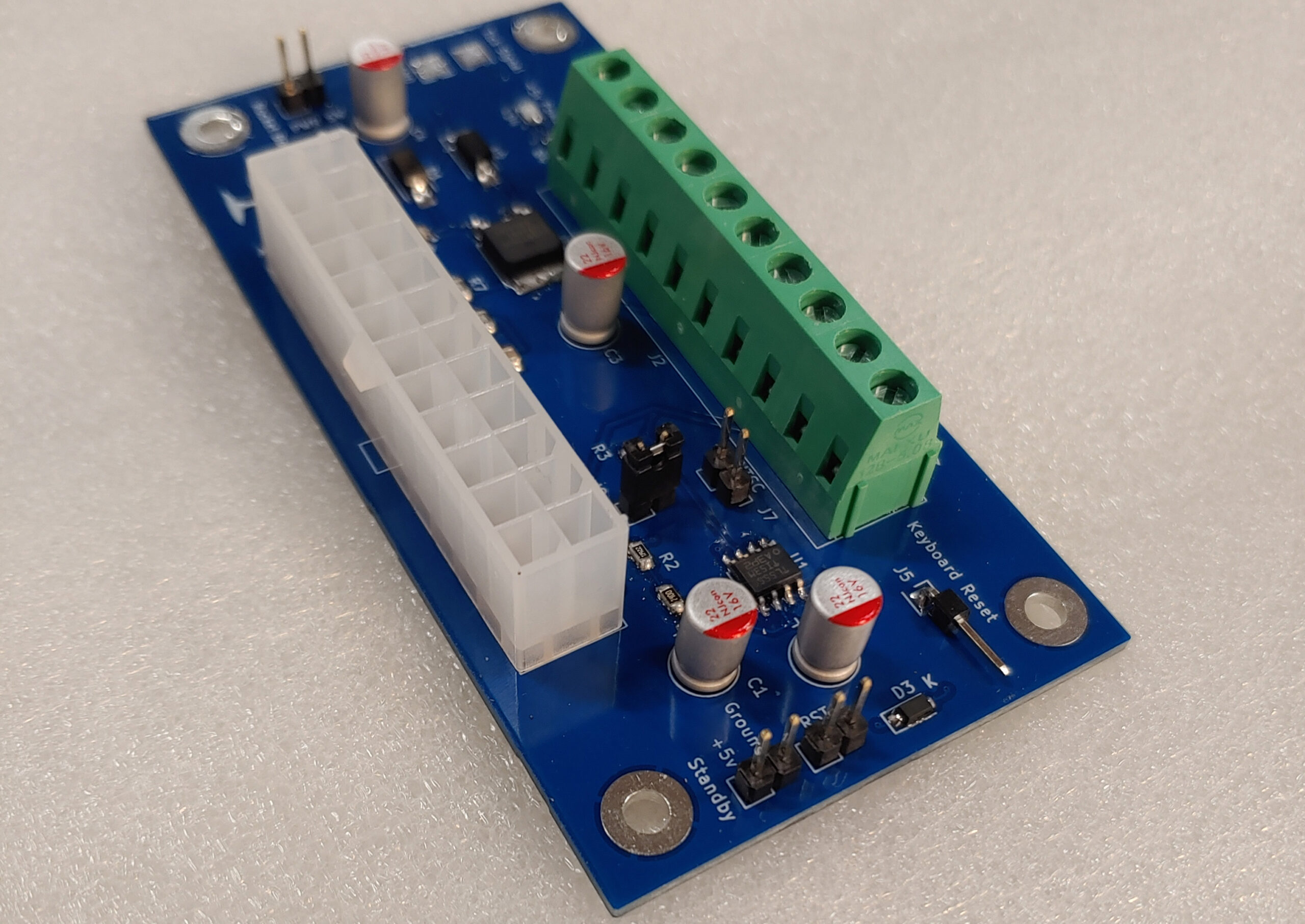

Amiga 2000 / 3000 ATX Power Adapter

Description

Allows you to connect a regular ATX PSU to an Amiga 2000, Amiga 3000, or any other computer with -5v, 5v, 12v, -12v, and Ground power requirements. Sporting the 555 chip it provides the 50 or 60 Hz “tick” selected via a jumper. New Version 1.4 board.

• High quality board with Polymer Aluminum Capacitors

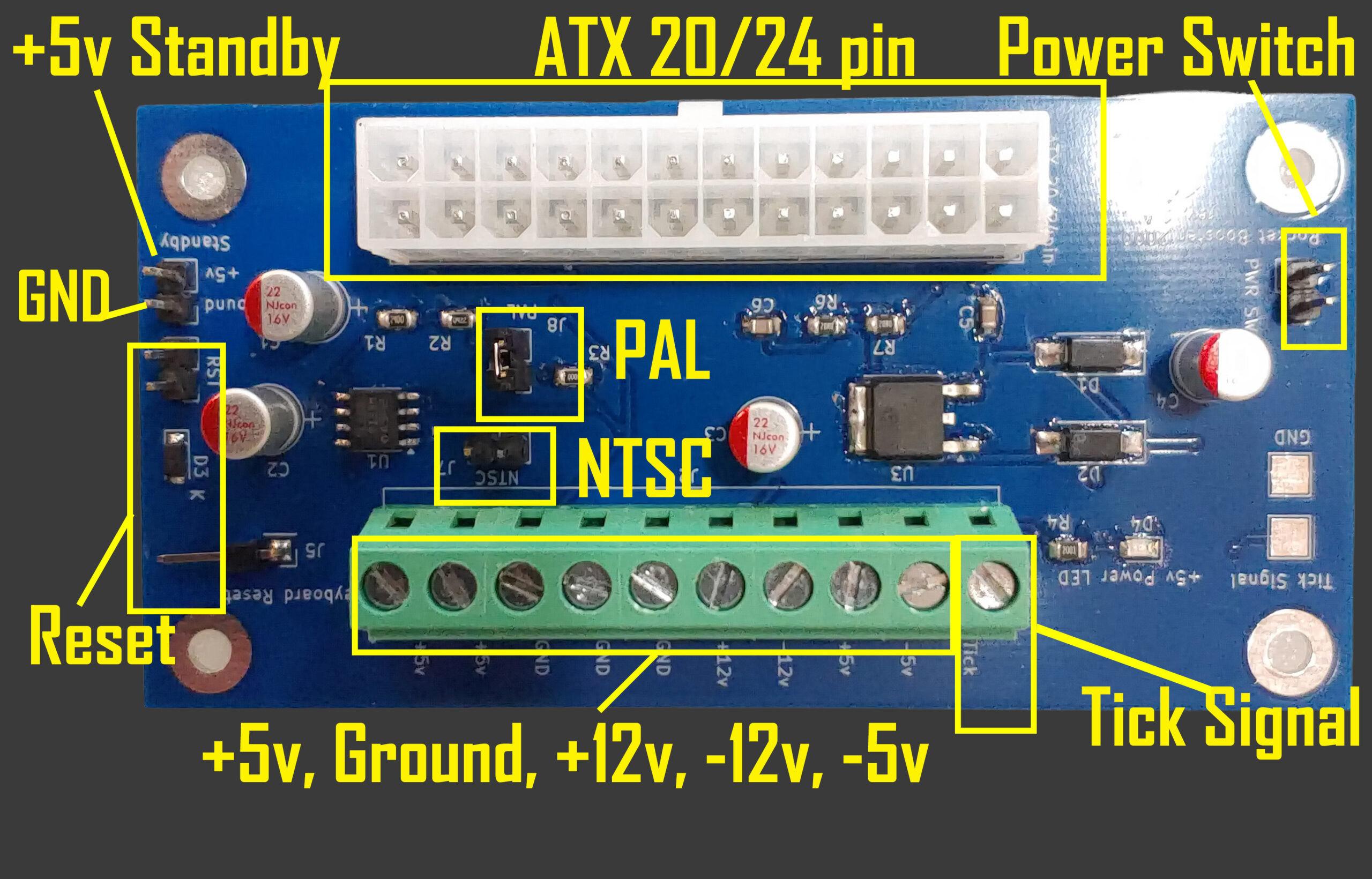

• ATX Socket
• Breakout connector allows you to wire the correct system-specific connector
• -5 volt provided by onboard voltage regulator
• Tick signal allows either 50Hz PAL or 60Hz NTSC for systems that need this. A jumper setting allows you to select 50 or 60 Hz.
• Header for access to ATX standby 5v power (Always ON)
• Optional diode-protected KB reset 2-pin header (requires connecting to the motherboard keyboard reset pin)
• Cables and power switch are not included
• Choose an ATX power supply that provides sufficient current on the +5V rail. Many modern PSUs prioritize the +12V rail, so verify the +5V output
